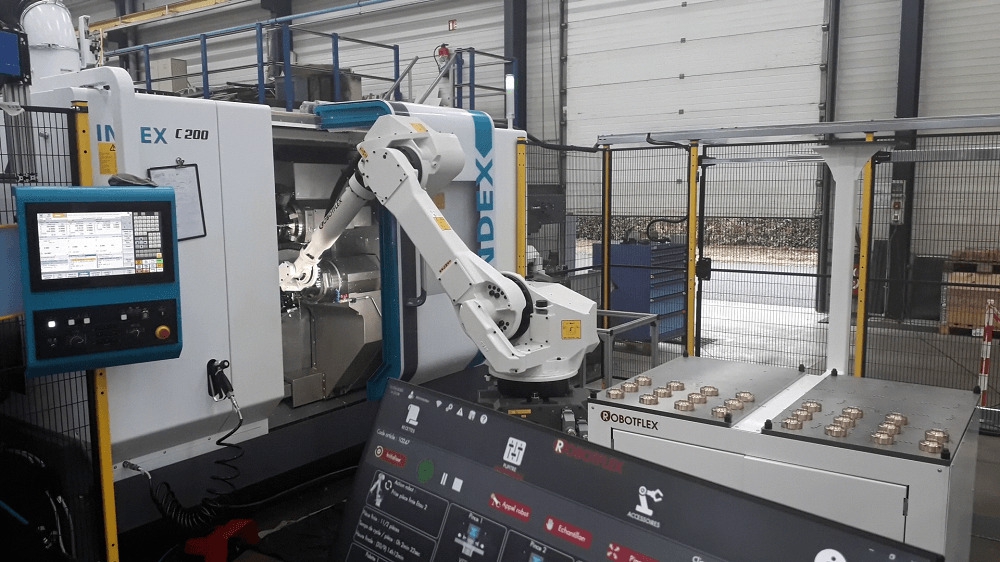

Robotic loading cell for CNC lathe

The ROBOTFLEX TR is integrated to your digital single-spindle, bi-spindle, multi-turret, multi-task CNC lathe ... new or already in operation of all brands. Thanks to a simple loading concept and an interface without robotic programming, the series changeover time of less than 10 min allows the robotization of very small series, starting from 5 pieces. The loading of raw is easy and fast thanks to many simple and powerful loading strategies. The workpieces are palletized automatically thanks to the robot which is stacking them on a pallet. ROBOTFLEX allows you to control the quality of your parts thanks to its many options.

REF : 030


  • Integrated robot brand : Fanuc
  • Range of products : CU25 CU70
  • Max. dimensions of parts : φ300/300mm
  • Max. weight of parts carried with 2 grippers :
    • 2x8kg
    • 2x24 kg
  • Max. weight of parts carried with 1 gripper :
    • 1x10kg
    • 1x30 kg
  • Blowing system and gripper adjustment tools
  • Adjustment of clamping jaws without tools
  • Safe access with radar or safety light curtain
  • Many additional functions are available : see on downloadable technical features
