AUTOMATED STORAGE SYSTEM FOR FRAME PARTS
Application to the sorting and storage of sections.
The TEC'UP H8R stacker crane, developed by TECAUMA, automates the sorting and storage of sections, after being cut and machined.
The TEC'UP H8R stacker crane consists of:
- sledge storage bays,

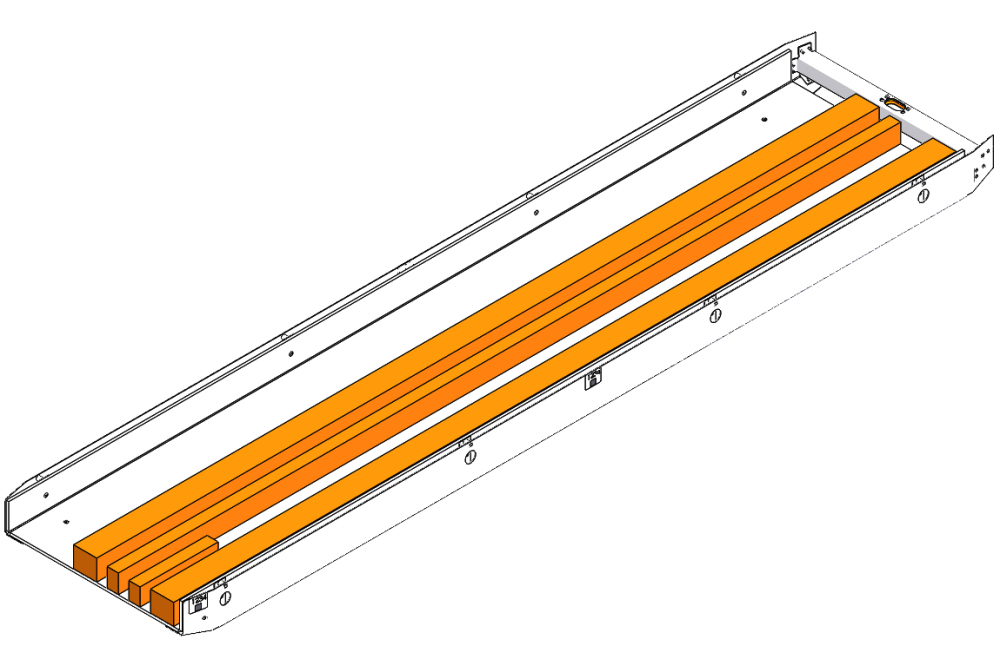

- an automatic sorting shuttle that groups the sections of a frame in the same sledge (up to 5 sections per sledge),
- a sledge distribution shuttle with a rotating plateform for directing the 4 on-board sledges towards the picking areas,
- ergonomic manual picking stations,
- a sledge cleaning station.
Technical
Features
- For cut, machined and possibly shod sections:
- Minimum length: 300 mm
- Maximum length: 3,000 mm
- Maximum height: 100 mm
- Minimum height: 30 mm
- Maximum weight per sledge: 20 kg, i.e. 4 to 5 sections (4 or 5 sections = 1 frame)
- Number of pitches: to be defined according to the volume of the building (height, width, length)
- Minimum width required in the building:
- 1 storage bay: 12 metres
- 2 storage bays: 15 metres
- Ergonomic and intuitive supervision software developed by TECAUMA
- Associated IT functions such as: stock mapping, inventory function, etc.
